Cleanroom Panel Deflection Control for Semiconductor Fabs: Aluminum Honeycomb, Rockwool and Reinforced Frames

Deflection Risk

Why Panel Movement Matters in Semiconductor Cleanrooms

In a normal room, slight panel movement may only be an appearance issue. In a semiconductor cleanroom, deflection can affect joint sealant, door frame alignment, return air leakage, ceiling gasket compression and the long-term cleanability of wall-to-ceiling junctions. A panel that bows under load can also create ledges where particles settle.

The design team should review panel span, core material, face sheet thickness, reinforcement, support method and service openings together. Long wall runs, tall partitions, walkable ceiling zones and heavy access panels need more attention than small enclosed rooms.

ISO 14644-4:2022 frames cleanroom creation from requirements through design, construction and start-up. For panel deflection, that means structural and architectural requirements should be defined before panels are fabricated.

Material Selection

Aluminum Honeycomb Panel vs. Rockwool Sandwich Panel

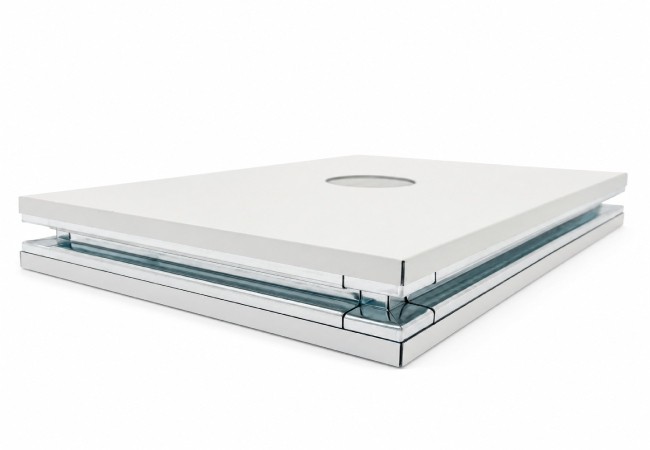

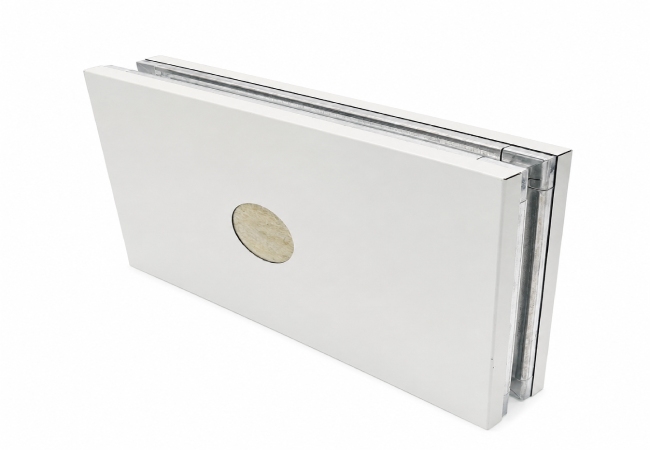

An aluminum honeycomb panel can provide high stiffness with lower weight, making it useful for large ceiling modules, tall partitions or cleanroom areas where flatness is critical. A rockwool sandwich panel is often considered when fire behavior, acoustic performance, thermal insulation and cost balance are important. Neither material is automatically better in every location; each must be matched to span, support and cleanroom risk.

Openings and Frames

Door, Window and Utility Openings Need Reinforced Load Paths

A cleanroom wall is usually strongest when it is uninterrupted. Once a door, vision window, transfer port, duct opening or cable penetration is added, the load path changes. The panel may need aluminum framing, steel reinforcement, thicker skins or a separate support frame to prevent local bending and joint cracking.

For semiconductor fabs, this matters because doors and pass-throughs often sit close to tools, service corridors and pressure boundaries. If a frame twists or settles, the gasket may lose compression. If a window module is unsupported, cleaning pressure and repeated door operation can slowly expose weak joints.

A good shop drawing should therefore show not only the panel module, but also reinforcement around each opening, anchorage points, sealant type, removable covers and inspection sequence.

Ceiling Loads

Walkable Ceilings and Service Panels Need a Separate Load Review

A cleanroom ceiling panel may carry only its own weight, or it may be part of a service platform with lights, filters, blank panels, access hatches and occasional maintenance loads. The distinction must be clear. Treating a non-walkable ceiling as walkable is a safety issue; treating a walkable ceiling as a generic panel is a cleanroom performance issue.

ISO 14644-3 covers cleanroom test methods such as airflow, pressure difference and recovery. A ceiling that deflects around filters, blank panels or access hatches can complicate testing and maintenance because the service plane no longer behaves consistently.

For Wonclean projects, panel selection should therefore be made together with ceiling grid spacing, hanger design, FFU positions, access hatch size and the intended maintenance approach.

Technical Fact Check

What This Article Does and Does Not Claim

• Panel material alone does not determine cleanroom class; airborne particle classification is verified under ISO 14644-1.
• Aluminum honeycomb panels can improve stiffness-to-weight ratio, but edge closure, supports and penetrations still control installed performance.
• Rockwool sandwich panels should be evaluated by core density, fire/acoustic needs and span limits; thickness alone is not enough.
• Structural load capacity and local code compliance must be confirmed by the project engineer, especially for walkable ceilings and large openings.

Referenced Technical Standards

Sources to Review During Engineering

• ISO 14644-4:2022: used where cleanroom requirements, design, construction and start-up planning are discussed.
• ISO 14644-3: used where airflow, pressure and cleanroom performance testing are discussed.
• ISO 14644-1: referenced for airborne particle cleanliness classification.

FAQ

Common Questions

Why is panel deflection important in semiconductor cleanrooms?

Because panel movement can stress seals, disturb pressure boundaries, affect door alignment and create ledges where particles collect.

When is an aluminum honeycomb cleanroom panel useful?

It is useful when stiffness, flatness and lower weight are important, especially in long-span walls, ceiling panels or large modular assemblies.

Is rockwool sandwich panel suitable for semiconductor cleanrooms?

It can be suitable where fire, acoustic or insulation performance is required, provided span, surface finish, joint sealing and support details are engineered correctly.

Do door and window openings need reinforcement?

Usually yes. Openings interrupt the panel load path, so reinforcement helps control local bending, gasket compression and long-term alignment.
